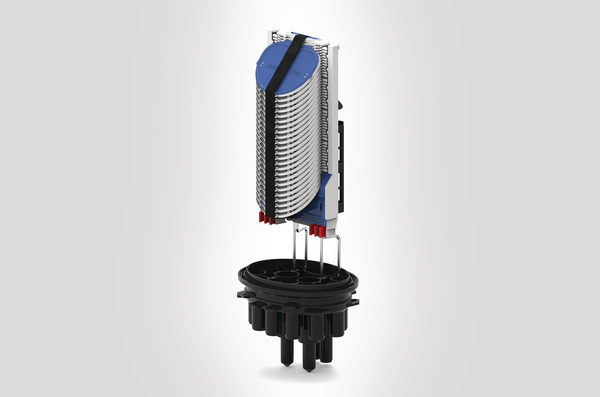

FDN 16 port B length IR closure with basket and 24 SE-IR MKI trays fitted with 2 x 3A splice bridges
Núm. Artíc. 857-00992
| FDNIR-BXBAWX
|
Detalles
- Maximum 288 fibre splice capacity (when double stacked on tray)
- 15 round ports and 1 oval port
- Moulded supports allow the cover to be removed whilst closure is left in-situ
- Fixing points for external cable management attachments
- Positive fibre management to ensure consistent 30mm bend radius throughout
- Fibre storage basket for loop through applications
- Bi-directional fibre routing
- Supplied with 24 SE-IR MKI Trays fitted with 2 x 3A (Green) splice protector inserts
- Maximum 12 splices per tray
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional pressure release valve
Solicite su oferta individual ahora
Solicitar Presupuesto
Más productos de la gama:
Cantidad por | Caja |
Capacidad de Empalmes | 288 |
Color | Negro (BK) |
Contenido | 1Pza |
GLOBAL PART DESCRIPTION | FDNIR-BXBAWX |
Material | Polipropileno (PP) |
Método de sellado | Cablelok, Termoretráctil |
Nº de Puertos | 1, 2, 9, 4 |
Número de bandejas | 24 |
Tipo | FDNIR-BXBAWX |
Tipo de Puerto | L, B, T, S |
Tipo de bandeja | Ruteado integrado SE, 250µm |
Variante | Cajas FTTx para Exteriores |
