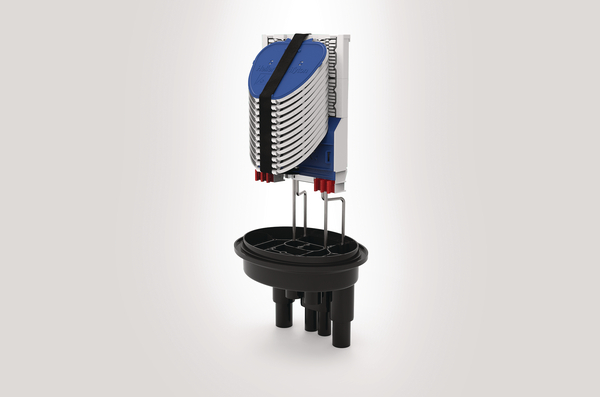

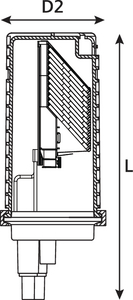

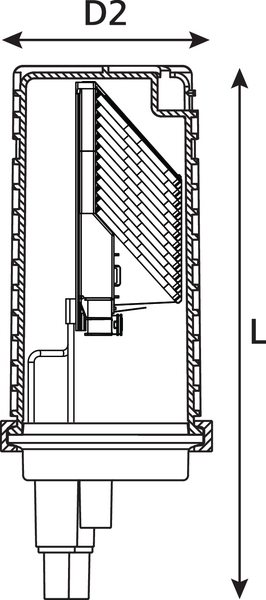

FDN 59 port AB length IR closure with 12 SE-IR MKII trays fitted with 2 x 3A splice bridges
Núm. Artíc. 857-02037
| FDNIR-ABXCMX
|
Detalles
- Maximum 144 fibre splice capacity
- 58 round ports and 1 oval port
- Moulded supports allow the cover to be removed whilst closure is left in-situ
- Fixing points for external cable management attachments
- Positive fibre management to ensure consistent 15mm bend radius throughout
- Bi-directional fibre routing
- Supplied with 12 SE-IR MKII Trays fitted with 2 x 3A (Green) splice protector inserts
- Maximum 12 splices per tray
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional pressure release valve
Solicite su oferta individual ahora
Solicitar Presupuesto
Más productos de la gama:
Cantidad por | Caja |
Capacidad de Empalmes | 144 |
Color | Negro (BK) |
GLOBAL PART DESCRIPTION | FDNIR-ABXCMX |
Material | Polipropileno (PP) |
Método de sellado | Cablelok, Termoretráctil |
Nº de Puertos | 1, 2, 4, 2, 52 |
Número de bandejas | 12 |
Tipo | FDNIR-ABXCMX |
Tipo de Puerto | L, T, S, B, R |
Tipo de bandeja | Ruteado integrado SE MKII |
Variante | Cajas FTTx para Exteriores |
