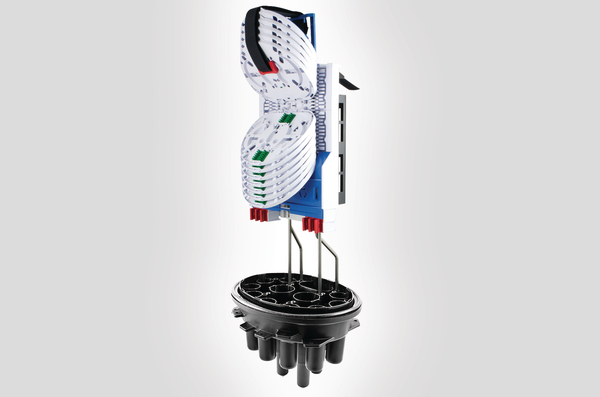

FDN 16 port AB length IR closure with basket and 24 x SC-IR MKI moulded splice holder trays
Núm. Artíc. 857-01001
| FDNIR-ABBAXW
|
Detalles
- Maximum 96 fibre splice capacity
- 15 round ports and 1 oval port

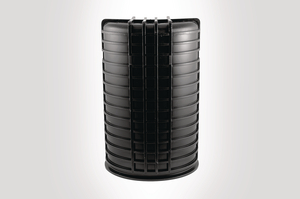

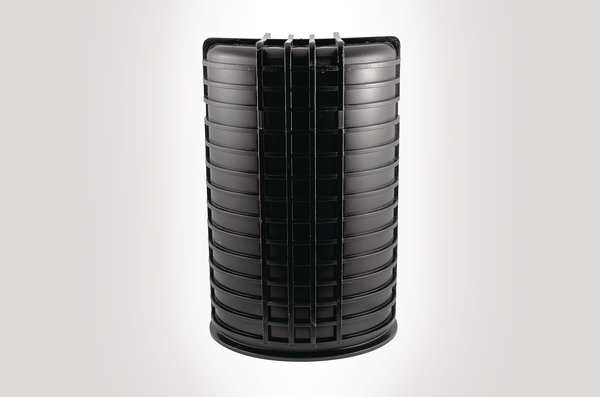

- Moulded supports allow the cover to be removed whilst closure is left in-situ
- Fixing points for external cable management attachments
- Positive fibre management to ensure consistent 30mm bend radius throughout
- Fibre storage basket for loop through applications
- Bi-directional fibre routing
- Supplied with 24 x SC-IR MKI Moulded Splice Holder Trays
- Maximum 4 splices per tray
- Cablelok compatible for all port sizes
- Quick release cover
- Optional pressure release valve
Solicite su oferta individual ahora
Solicitar Presupuesto
Más productos de la gama:
Cantidad por | Caja |
Capacidad de Empalmes | 96 |
Color | Negro (BK) |
GLOBAL PART DESCRIPTION | FDNIR-ABBAXW |
Material | Polipropileno (PP) |
Método de sellado | Cablelok, Termoretráctil |
Nº de Puertos | 1, 2, 9, 4 |
Número de bandejas | 24 |
Tipo | FDNIR-ABBAXW |
Tipo de Puerto | L, B, T, S |
Tipo de bandeja | Ruteado integrado SC |
Variante | Caja de Exterior |
